SmCo hlau nplaum
Lus piav qhia luv luv:
Pab neeg hlau nplaum fais fab tau tsim SmCo hlau nplaum tau ntau xyoo thiab muaj kev nkag siab tob txog cov ntaub ntawv science thiab engineering technology.Qhov no ua rau peb tsim cov hlau nplaum SmCo zoo tshaj plaws thiab tsim kom muaj txiaj ntsig rau cov neeg siv khoom.
Cov khoom tseem ceeb samarium-cobalt tsim, tsim los ntawm Magnet Power yog qhia raws li hauv qab no:
Magnets 1:SmCo5(1:5 18-22)
Magnets 2:Sm2Co17 (H series Sm2Co17)

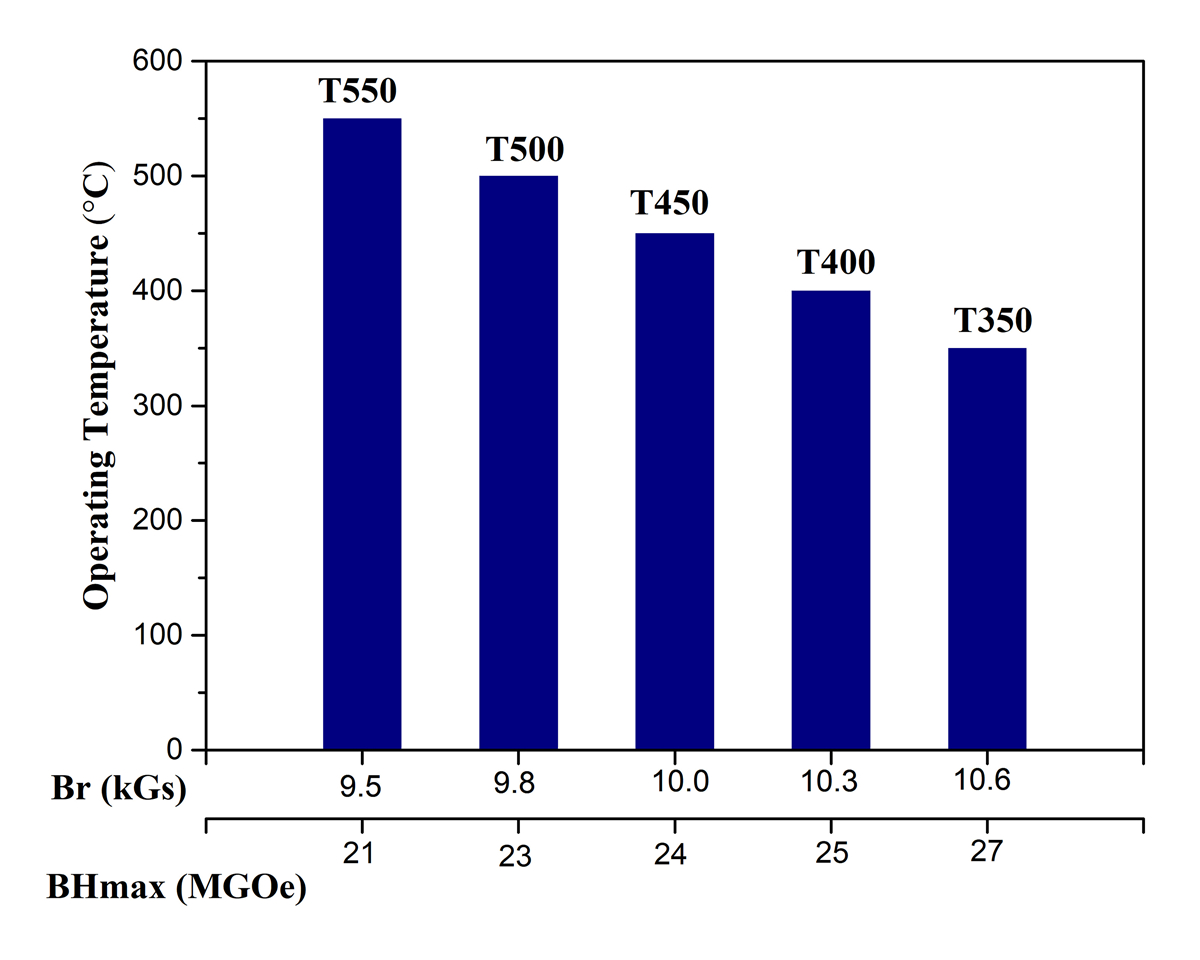

Magnets 3:Kub kub kuj Sm2Co17 (T series Sm2Co17, T350-T550)

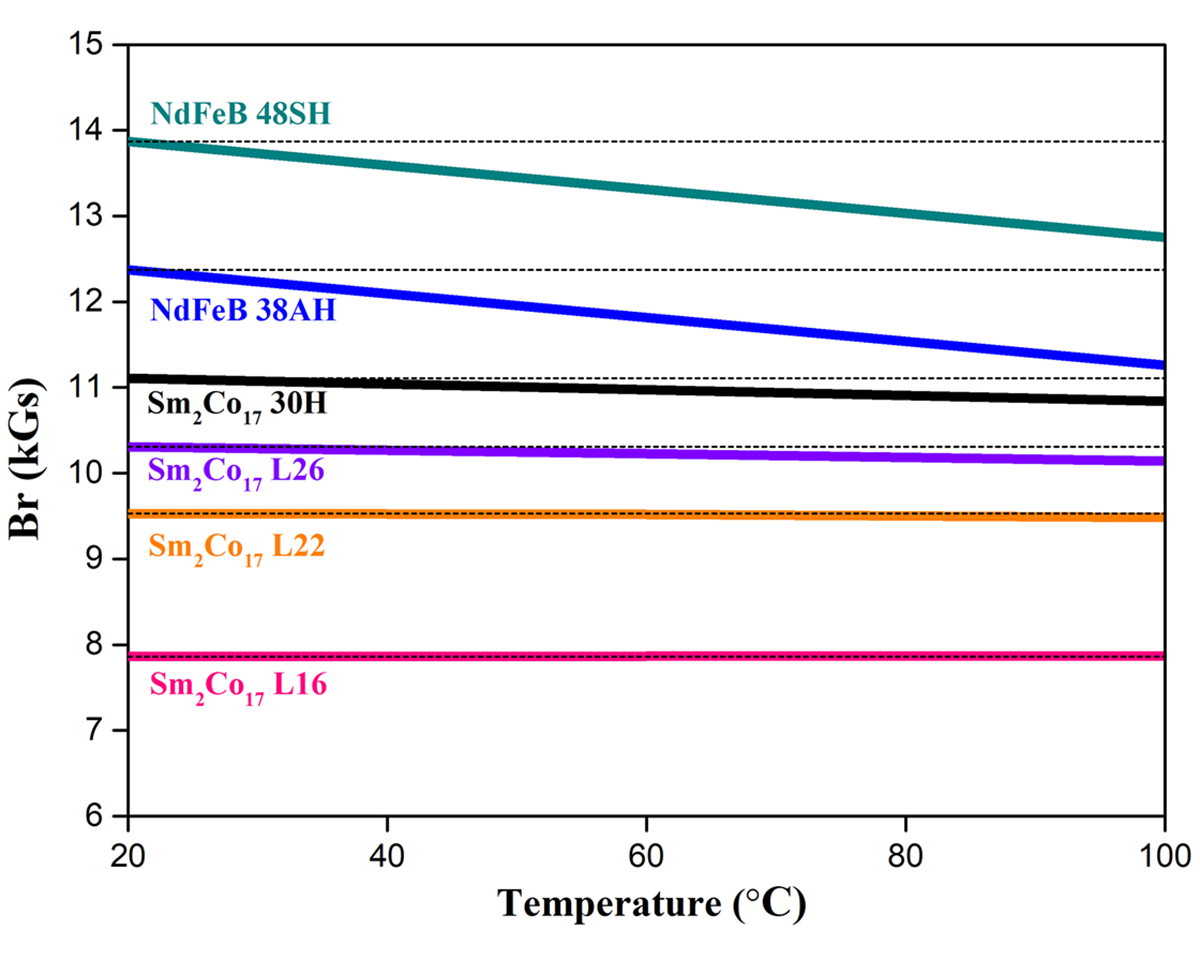

Magnets 4:Kub compensated Sm2Co17 (L series Sm2Co17, L16-L26)
Cov khoom siv samarium cobalt ntawm Magnet Power tau siv dav hauv:
High Speed Motors (10,000 rpm +)
Cov cuab yeej kho mob thiab khoom siv,
Rail Transit
Kev sib txuas lus
Kev tshawb fawb

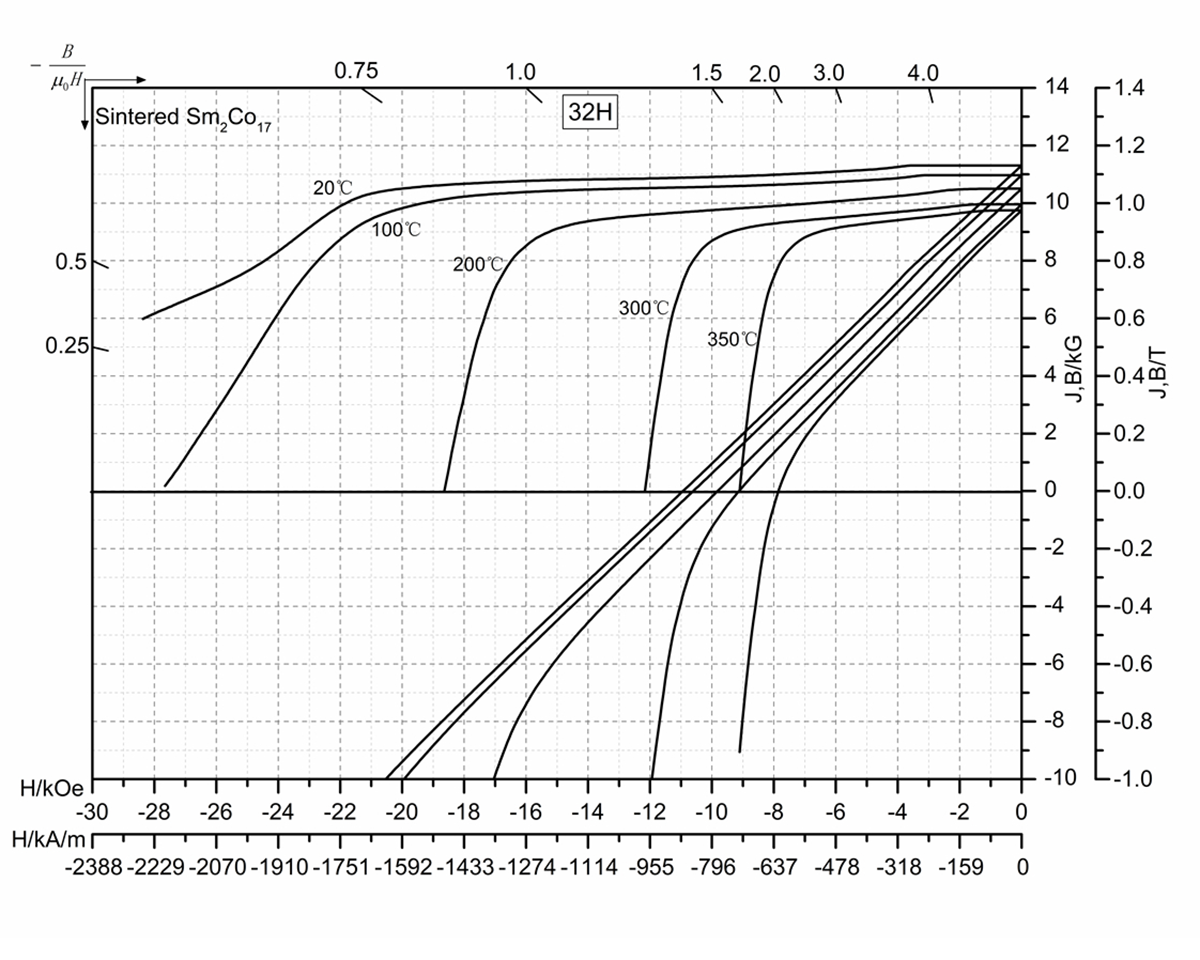

H series Sm2Co17
T series Sm2Co17
L series Sm2Co17

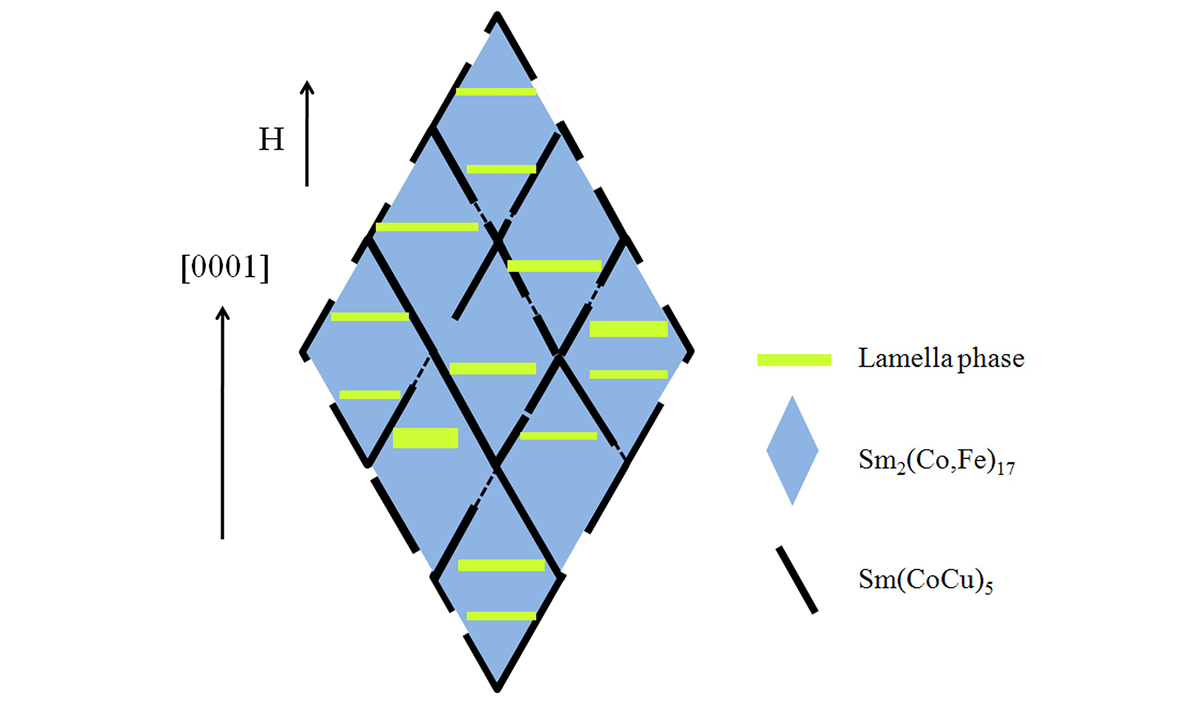

Kev sib xyaw thiab microstructure tswj yog cov ntsiab lus tseem ceeb ntawm samarium cobalt hlau nplaum ntau lawm thiab txiav txim siab cov khoom sib nqus.Vim tias tsis zoo li tus qauv, kev ua siab ntev thiab zoo li ntawm samarium cobalt hlau nplaum kuj tseem ceeb.

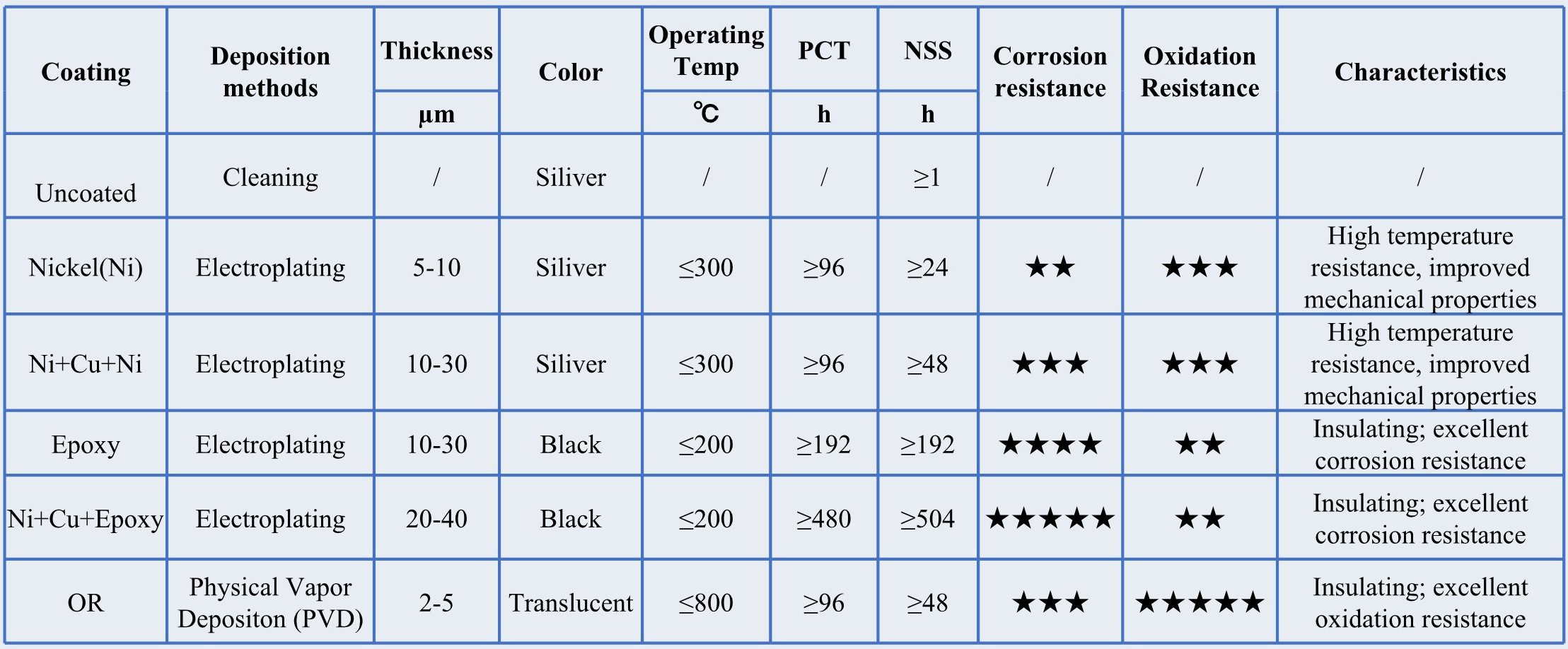

● Ni-raws li txheej tuaj yeem txhim kho lub zog khoov ntawm Sm2Co17 ~ 50%
● Ni-based coatings tuaj yeem siv tau txog li 350 ℃ los txhim kho qhov tsos thiab kev ruaj ntseg mus ntev
● Epoxy-raws li txheej tuaj yeem siv tau txog li 200 ℃ (lub sijhawm luv) los txhim kho cov khoom siv kho tshuab, kev tiv thaiv corrosion, thiab txo qis eddy-tam sim no thiab txo qhov kub thiab txias.

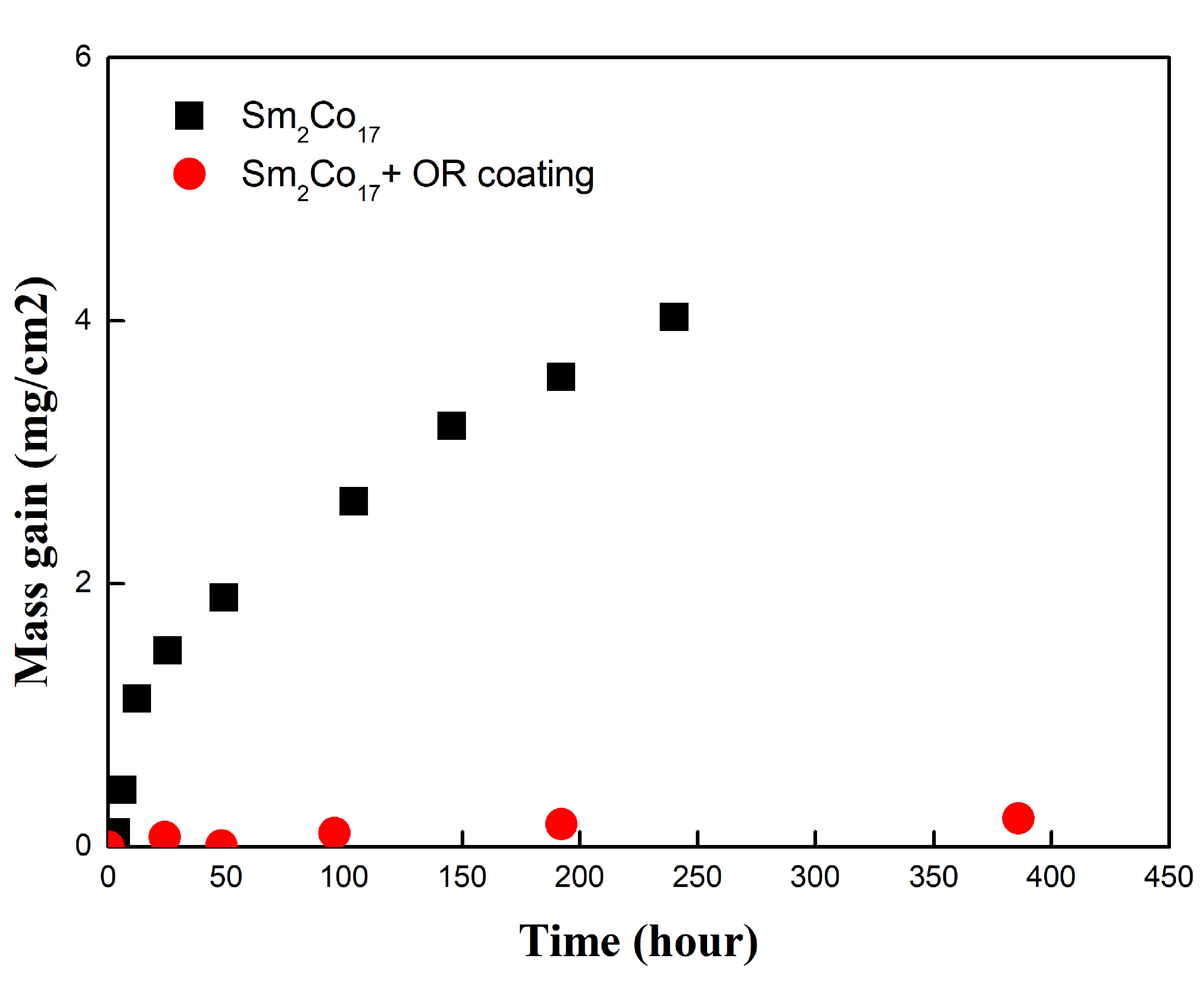

● Ntawm qhov kub siab tshaj 500 ℃ hauv huab cua, txheej degradation yuav cuam tshuam cov khoom sib nqus.LOSSIS txheej tuaj yeem txhim kho lub sijhawm ntev ntawm SmCo ntawm 500 ℃
● Vim nws cov khoom siv rwb thaiv tsev zoo heev, OR txheej tuaj yeem txo qis eddy-tam sim no thiab suppress kub nce.
● Ib puag ncig tus phooj ywg.
